1" Deep x 3/4" Mini Mesh Properties

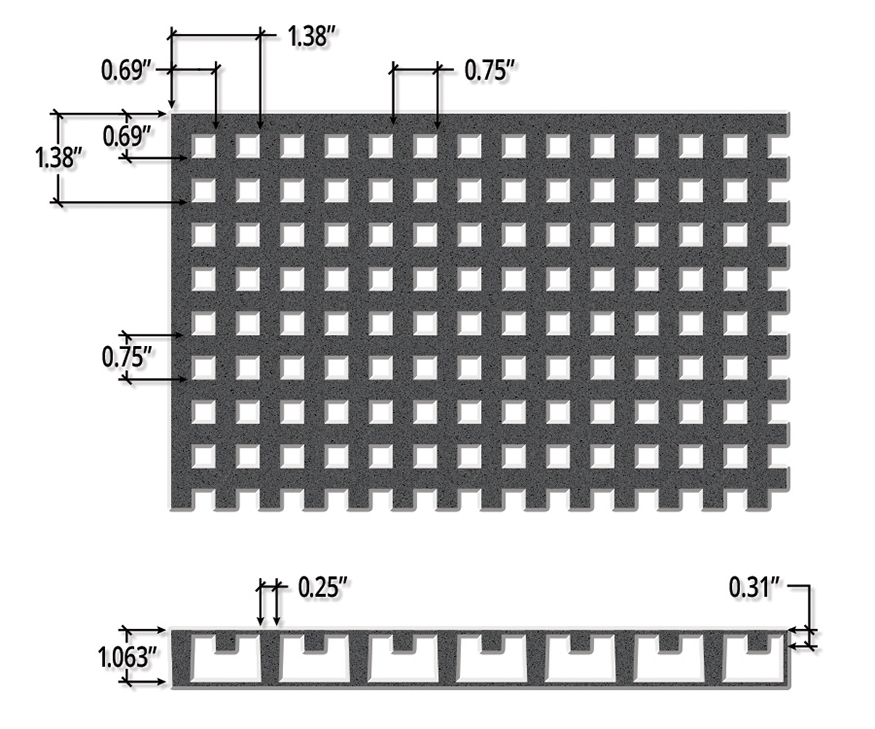

One Inch Deep X Three Quarter Inch Mini Mesh Molded FRP Grating


PANEL COLOR PANEL SIZE WEIGHT (APPROXIMATE) STOCKED ITEM
Dark Gray 4' x 12' 2.90 lbs/ft2 Ready to Ship!
BARS BAR WIDTH BAR CENTERS OPEN AREA
8 1/4" 1 1/2" 44%

~ Properties Per Foot of Width ~
 A = 2.34 in2      I = .23 in4      S = .37 in3



UNIFORM LOAD DEFLECTION (lbs/ft2)
  50 100 150 200 250 500 1000
12" SPAN <0.01 <0.01 <0.01 0.01 0.02 0.03 0.06
18" SPAN 0.01 0.03 0.04 0.06 0.07 0.14 0.28
24" SPAN 0.04 0.08 0.12 0.16 0.21 0.41 --


CONCENTRATED LINE DEFLECTION (lbs/ft2)
  50 100 150 200 250 500 1000
12" SPAN <0.01 <0.01 0.01 <0.02 <0.02 0.05 0.10
18" SPAN 0.01 0.03 0.04 0.06 0.07 0.15 0.30
24" SPAN 0.03 0.07 0.10 0.13 0.16 0.33 --


MOLDED GRATING
