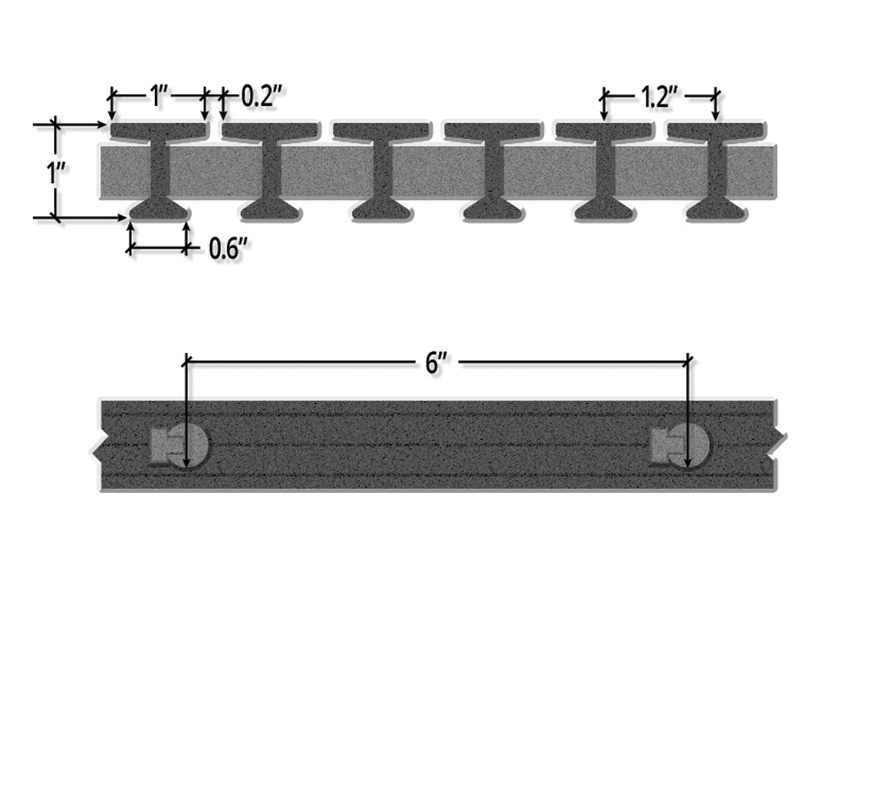

1" Deep / 17% Open Pedestrian T-Bar Properties

One Inch Deep Seventeen Percent Open Pedestrian T Bar Pultruded FRP Grating

PANEL COLOR	PANEL SIZE	WEIGHT (APPROXIMATE)	CUSTOM ITEM
Custom	Custom	3.82 lbs/ft²	*Call to Order!*

BARS	BAR DEPTH	OPEN AREA	MAX WIDTH	LOAD BAR CENTERS	CROSS BAR SPACING
10	1"	17%	5'	1.2"	6"

~ Properties Per Foot of Width ~
A = .00 in² I = .00 in⁴ S = .00 in³

UNIFORM LOAD DEFLECTION (lbs/ft²)
	50	100	150	200	250	500	1000
12" SPAN	0.001	0.002	0.004	0.005	0.01	0.01	0.02
18" SPAN	0.005	0.01	0.01	0.02	0.02	0.05	0.10
24" SPAN	0.01	0.03	0.04	0.05	0.07	0.13	0.27

CONCENTRATED LINE DEFLECTION (lbs/ft²)
	50	100	150	200	250	500	1000
12" SPAN	0.002	0.004	0.01	0.01	0.01	0.02	0.04
18" SPAN	0.01	0.01	0.02	0.02	0.03	0.05	0.10
24" SPAN	0.01	0.02	0.03	0.04	0.05	0.11	0.22
