1" Deep / 50% Open Pedestrian T-Bar Properties

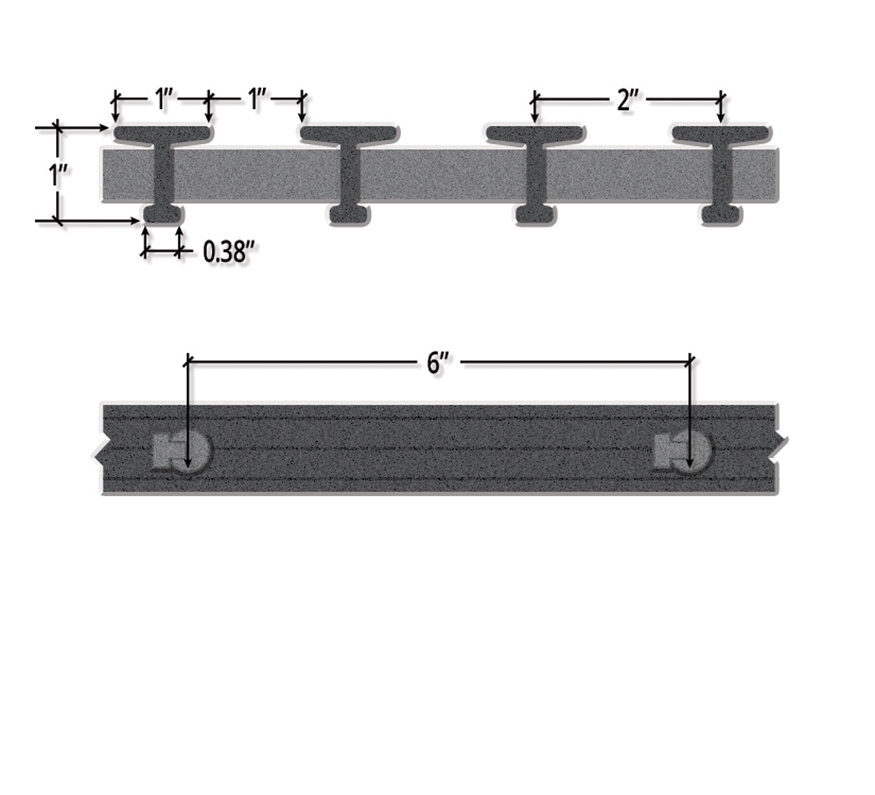

One Inch Deep Fifty Percent Open Pedestrian T Bar Pultruded FRP Grating

PANEL COLOR	PANEL SIZE	WEIGHT (APPROXIMATE)	CUSTOM ITEM
Custom	Custom	1.81 lbs/ft²	*Call to Order!*

BARS	BAR DEPTH	OPEN AREA	MAX WIDTH	LOAD BAR CENTERS	CROSS BAR SPACING
6	1"	50%	5'	2"	6"

~ Properties Per Foot of Width ~
A = 1.76 in² I = 0.21 in⁴ S_T = 0.59 in³ S_B = 0.31 in³

UNIFORM LOAD DEFLECTION (lbs/ft²)
	50	100	150	200	250	500	1000
18" SPAN	<0.01	0.02	0.03	0.04	0.04	0.09	0.17
24" SPAN	0.02	0.05	0.07	0.10	0.12	0.24	0.49
30" SPAN	0.06	0.11	0.17	0.23	0.28	--	--

CONCENTRATED LINE DEFLECTION (lbs/ft²)
	50	100	150	200	250	500	1000
18" SPAN	<0.01	0.02	0.03	0.04	0.05	0.09	0.18
24" SPAN	0.02	0.04	0.06	0.08	0.10	0.19	0.39
30" SPAN	0.04	0.07	0.11	0.14	0.18	0.36	--
