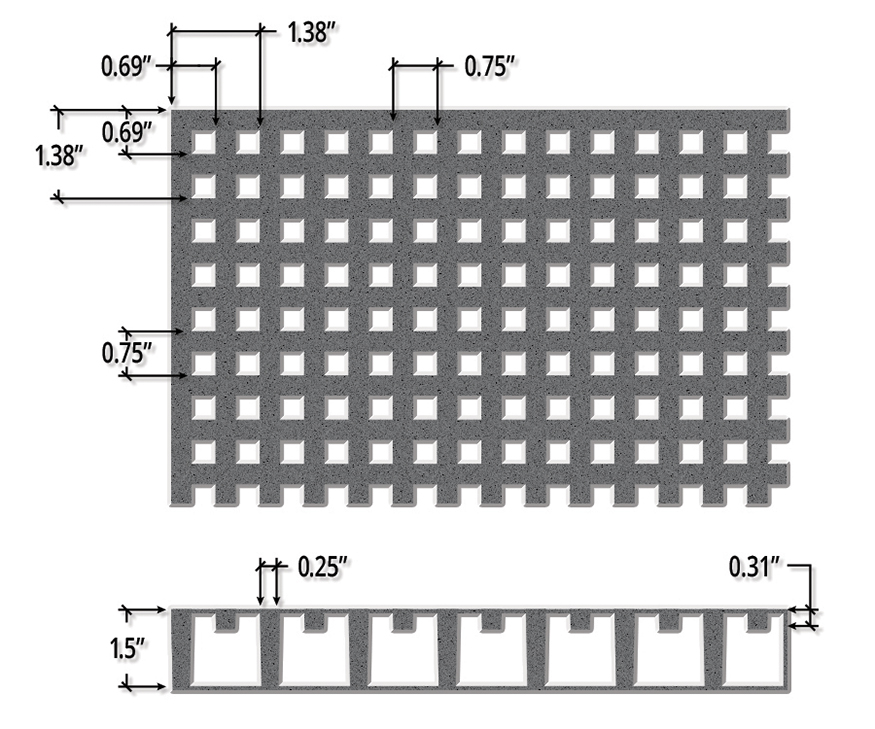

1 1/2" Deep x 3/4" Mini Mesh Properties


One and One Half Inch Deep X Three Quarter Inch Mesh Molded FRP Grating


PANEL COLOR PANEL SIZE WEIGHT (APPROXIMATE) STOCKED ITEM
Light Gray 4' x 12' 4.75 lbs/ft2 Ready to Ship!
BARS BAR WIDTH BAR CENTERS OPEN AREA
8 1/4" 3/4" 44%

~ Properties Per Foot of Width ~
 A = 3.29 in2      I = .74 in4      S = .90 in3



UNIFORM LOAD DEFLECTION (lbs/ft2)
  50 100 150 200 250 500 1000
12" SPAN <0.01 <0.01 <0.01 <0.01 <0.01 <0.01 0.02
18" SPAN <0.01 <0.01 0.01 0.02 0.02 0.04 0.08
24" SPAN 0.01 0.02 0.03 0.04 0.05 0.11 0.22


CONCENTRATED LINE DEFLECTION (lbs/ft2)
  50 100 150 200 250 500 1000
12" SPAN <0.01 <0.01 <0.01 <0.01 <0.01 0.02 0.03
18" SPAN <0.01 <0.01 0.01 0.02 0.02 0.04 0.09
24" SPAN <0.01 0.02 0.03 0.04 0.04 0.09 0.18


MOLDED GRATING
