FRP GUARDRAIL SYSTEMS

Molded FRP Grating Platform used around tanks at United States Filter Company

Fiberglass Reinforced Plastic (FRP) Handrail Systems are safe, OSHA compliant, corrosion resistant, virtually maintenance free, and easy to install.

Standard industrial Handrail is a 2-rail system with kickplate fabricated from its high strength pultruded structural shapes with UV inhibitors manufactured into the resin and synthetic surfacing veils that allow a resin rich surface. Standard systems are produced in safety yellow, with other colors available upon request.

FRP Handrails are available prefabricated and factory assembled or can be shipped in components for easy on site field fabrication. A factory applied UV coating is recommended when handrails will be utilized outdoors.



GUARDRAIL STYLES

Fiberglass Grating’s OSHA compliant handrails are offered in four versions: light duty, standard, heavy duty, and an ergonomic oval system. Custom handrail systems for other applications including landscaping, architectural and ADA compliance are also available upon special order request.

FRP Guardrail Styles and Dimensions Chart



GUARDRAIL PARTS

 FRP Square Tube    FRP Round Tube    FRP Ergonomic Oval    FRP Kickplate

Square Tube

  Round Tube
Mid Rail
  Ergonomic Oval
Top Rail
  Kickplate



TYPICAL GUARDRAIL SYSTEM

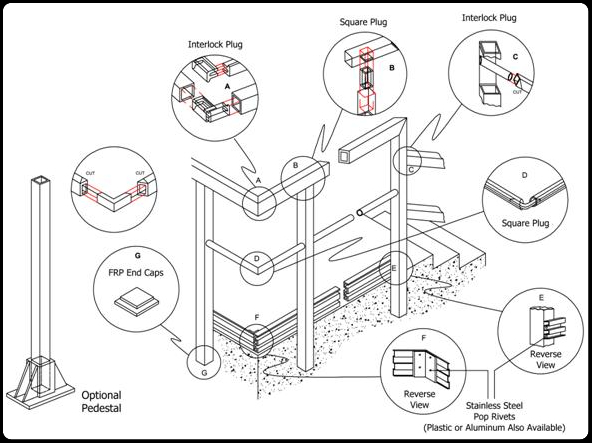

Typical Fiberglass Guardrail System Diagram



Safety Yellow FRP Guardrail and Platform   Fiberglass Guardrail Installed at Ma Wan



POST INSTALLATION GUIDE

 Post Attachment to 6 Inch I Beam with Spacer
Post Attachment to 6" I-Beam      with Spacer
   Post Attachment to 6 Inch Wide Flange Beam with Spacer
Post Attachment to 6" WF-Beam with Spacer
   Post Attachment to 6 Inch Channel with Spacer
Post Attachment to 6" Channel    with Spacer


 Post Attachment to Channel without Spacer
Post Attachment to Channel without Spacer

   Post Attachment to Steel Plate without Spacer
Post Attachment to Steel Plate without Spacer




OSHA STANDARD

OSHA Standard Guardrail System Diagram
